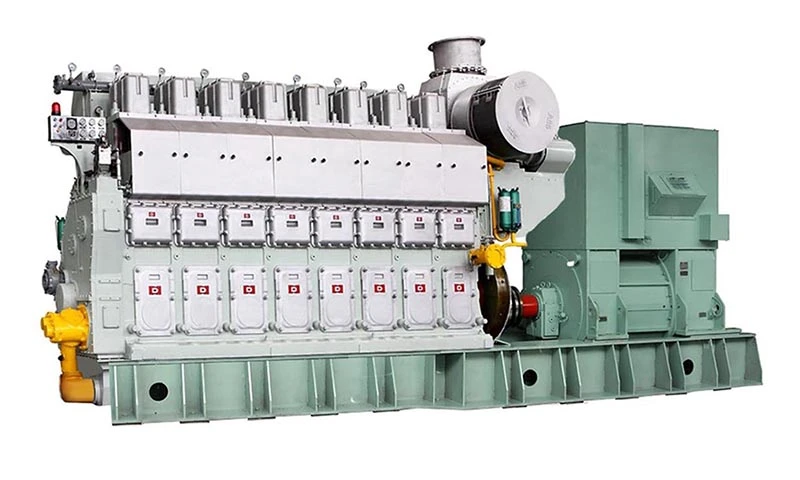

Taikai Supplied Series Diesel Generator Set (2500 – 4000kW)
INQUIRY NOW

Introduction

文本文字

Model Portfolio Table

Rated Output (kW)250030003200350038004000
Bore x Stroke (mm)340 x 480
Engine TypeFour-Stroke, In-line, direct Injection, Turbocharged, Intercooled
Engine Rated Power (kW)308933104045404545004500
Speed (rpm)50Hz / 60Hz@600
SFOC (g/kW·h)194+3%

Electrical Performance


Voltage

Voltage no-load regulation range%95~105
Voltage fluctuation rate%±1
Steady state voltage regulating rate%±2.5
Transient voltage regulating rate%±20~-15
Stabilization times1
Alternator Excitation method
Brushless AVR


Frequency

Steady-state frequency (rev.) regulating rate%5
Frequency (rev.)  fluctuation rate%±0.5
Transient frequency regulating rate%±10
Stabilization times< 5
Frequency regulating method
Auto / Manual


Protection

Over Speed115% Nr   A, T, SReverse Power-9.6% Pn A, T
LO. Pressure0.25MPa A, 0.15MPa T, SOver Current130% In A, T
Freshwater Temperature80℃ A, 85℃ T, SOver Voltage120% Vn A, T
LO. Temperature90℃ AOverload110% In A

Notes: All engine rating data is based on ISO 3046/1.
Reference conditions: Ambient 45℃, Relative humidity 60%, Intercooler coolant inlet 32 ℃.
If test ambient conditions are not the same as the fiducially ambient conditions. The power shall be revised according to ISO3046-1: 2002.=
Fuel characteristics: MDO, Lower heat value:42700kj/kg, Consumption tolerance: +5%.
Power: An overload of 10% is permitted for one hour every twelve hours of operation.

Characteristics:

  • Meet with: ISO8528, ISO3046, GB/T13032.
  • Marine medium speed engine driven, unrestricted service configured, IMO Tier II D2 certified.
  • Brushless self-excited alternator with AVR, G3 electricity quality.
  • Application:Power plant set, Marine Auxiliary power.
  • As offer customized power plant solutions with multi-options fuels of diesel, LPFO/HFO, biofuel, natural gas, tire pyrolysis oil, etc.
  • Easy installation, high reliability, low noise, low operating cost, and environmentally friendly.

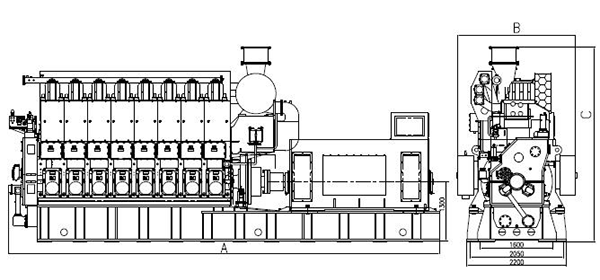

Outline

CSI Ningdong NL340 Series Diesel Generator Set (2500 - 4000kW)

Gensets Dimensions(approx.)

ModelABCWeight
mmmmmm(kg)
2500GF81002600428956000
3000GF83002580422057000
3200GF94502680465079000
3500GF95082680465079500
3800GF95502700470080500
4000GF96002750472081000

Remarks: Dimensions and weight are for reference only. For generator set model selection, please make communicate with relevant personnel. The delivery scope for each model engine shall be performed as per the corresponding technical files.
