Product Description

The generator set is powered by Taikai Electric Supplied N230 series marine diesel engine, which covers a power range from 800 – 1200kW, produced under ISO 8528 Reciprocating Internal Combustion Engine Driven Alternating Current Generating Set and IEC60034-1 Rotating Electrical Machines with high-quality control.

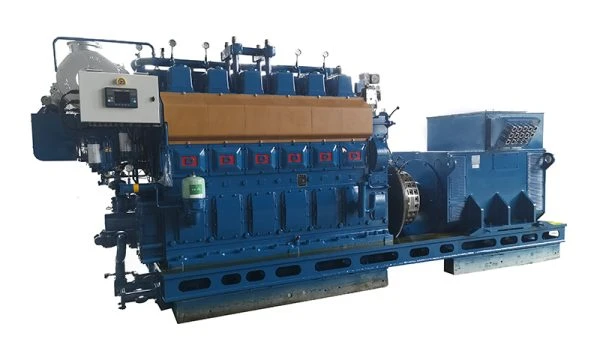

The generator sets that contain an N230 engine and alternator mounted on a common base, fully completed with essential auxiliaries, is designed for continuous reliability under a wide range of operating condition. Thanks to the under-slung main bearing structure of the N230 engine, the generator offers low vibration and noise, and high-quality output. The generator is valid in 6 cylinders. With essential HFO treatment equipment, the Genset can burn HFO up to 380Cst@50 oC with long TBO.

Model Portfolio Table

Electrical Performance

Notes: All engine rating data is based on ISO 3046/1.
Reference conditions: Ambient 45℃, Relative humidity 60%, Intercooler coolant inlet 32 ℃.
If test ambient conditions are not the same as the fiducially ambient conditions. The power shall be revised according to ISO3046-1: 2002.
Fuel characteristics: MDO, Lower heat value:42700kj/kg, Consumption tolerance: +5%.
Power: An overload of 10% is permitted for one hour every twelve hours of operation.

Characteristics:

• Meet with: ISO8528, ISO3046, GB/T13032.
• Marine medium speed engine driven, unrestricted service configured, IMO Tier IID2 certified.
• Brushless self-excited alternator with AVR, G3 electricity quality.
• Application:Power plant set, Emergency automatic start power, Marine Auxiliary power.
• As offer customized power plant solutions with multi-options fuels of diesel, LPFO/HFO, biofuel, natural gas, tire pyrolysis oil, etc.
• Easy installation, high reliability, low noise, low operating cost, and environmentally friendly.

Outline

Remarks: Dimensions and weight are for reference only. For generator set model selection, please make communicate with relevant personnel. The delivery scope for each model engine shall be performed as per the corresponding technical files.
