Product Description

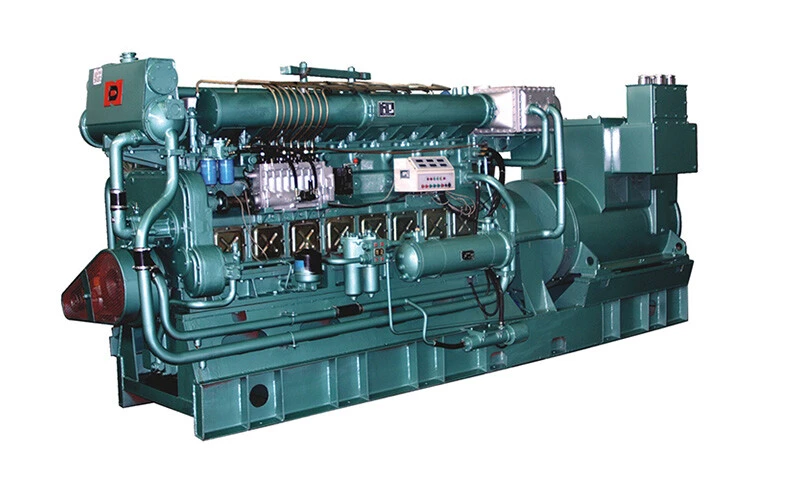

The generator set, comprising a generator and Taikai Electric Supplied N160 series diesel engine mounted on a common baseframe, fully completed with essential auxiliaries, is an ideal standby emergency power supply for small-sized industrial and mining enterprises, hotels, rural areas, etc. The generator combined with all auxiliaries can be accommodated in a 20’ sound-proof container that is an efficient answer for isolated developing regions which do not have alternative energy sources and for those applications where mobility and fast installation of energy plants are required.

Model Portfolio Table

Electrical Performance

Notes: All engine rating data is based on ISO 3046/1.
Reference conditions: Ambient 45℃, Relative humidity 60%, Intercooler coolant inlet 32 ℃.
If test ambient conditions are not the same as the fiducially ambient conditions. The power shall be revised according to ISO3046-1: 2002.
Fuel characteristics: MDO, Lower heat value:42700kj/kg, Consumption tolerance: +5%.
Power: An overload of 10% is permitted for one hour every twelve hours of operation.

Characteristics:

• Meet with: ISO8528, ISO3046, GB/T13032.
• Marine medium speed engine driven, unrestrictedservice configured, IMO Tier II D2 certified.
• Brushless self-excited alternator with AVR, G3 electricity quality.
• Application:Power plant set, Emergency automatic start power, Marine Auxiliary power, Container type diesel generator set.
• As offer customized power plant solutions with multi-options fuels of diesel, LPFO/HFO, biofuel, natural gas, tire pyrolysis oil, etc.
• Easy installation, high reliability, low noise, low operating cost, and environmentally friendly.

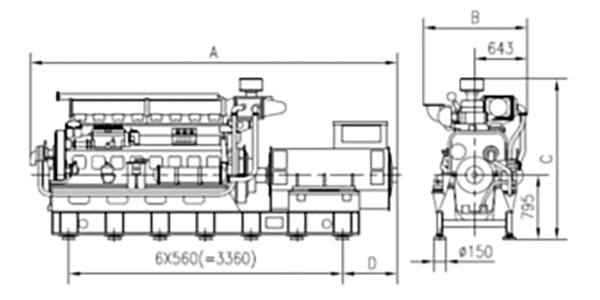

Outline

Remarks: Dimensions and weight are for reference only. For generator set model selection, please make communicate with relevant personnel. The delivery scope for each model engine shall be performed as per the corresponding technical files.
