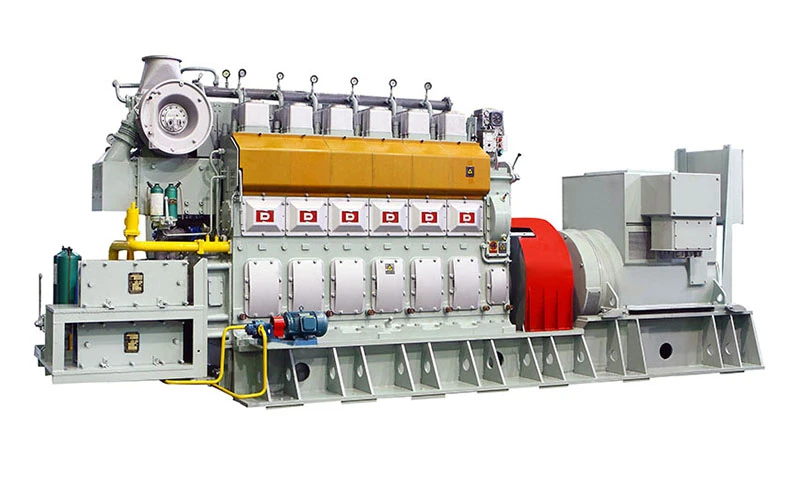

Taikai Supplied Series Gas Generator Set (500 – 1000kW)



taikai@taikai.cc



taikaigroup@126.com



Info@transelec.com.cn



sales@transelec.com.cn

INQUIRY NOW

Introduction

文本文字

Model Portfolio Table

Rated output (kW)	500	600	800	1000
Bore x Stroke (mm)	210 x 300
Engine Rated Power (kW)	551	661	882	1103
Speed (rpm)	50Hz@750, @1000/ 60Hz@900
Fuel Type	LNG or CNG
Mean Effective Pressure	14.1 – 17.4 bar
Engine Thermal Efficiency	41.5%

Electrical Performance

Voltage	Voltage no-load regulation range		%	95~105
	Voltage fluctuation rate		%	±1
	Steady state voltage regulating rate		%	±2.5
	Transient voltage regulating rate		%	±20～-15
	Stabilization time		s	1
	Alternator Excitation method			Brushless AVR
Frequency	Steady-state frequency (rev.) regulating rate		%	5
	Frequency (rev.) fluctuation rate		%	±0.5
	Transient frequency regulating rate		%	±10
	Stabilization time		s	< 5
	Frequency regulating method			Auto / Manual
Protection	Over Speed	115% Nr A, T, S	Reverse Power		-9.6% Pn A, T
	LO. Pressure	0.25MPa A, 0.15MPa T, S	Over Current		130% In A, T
	Freshwater Temperature	80℃ A, 85℃ T, S	Over Voltage		120% Vn A, T
	LO. Temperature	90℃ A	Overload		110% In A

Notes: All engine rating data is based on ISO 3046/1.
Reference conditions: Ambient 45℃, Relative humidity 60%, Intercooler coolant inlet 32 ℃.
If test ambient conditions are not the same as the fiducially ambient conditions. The power shall be revised according to ISO3046-1: 2002.
Power: An overload of 10% is permitted for one hour every twelve hours of operation.

Characteristics:

Meet with: ISO8528, ISO3046, GB/T13032.
Marine medium speed engine driven, unrestricted service configured, IMO Tier IID2 certified.
Brushless self-excited alternator with AVR, G3 electricity quality.
Application:Power plant set, Emergency automatic start power, Marine Auxiliary power.
As offer customized power plant solutions with multi-options fuels of diesel, LPFO/HFO, biofuel, natural gas, tire pyrolysis oil, etc.
Easy installation, high reliability, low noise, low operating cost, and environmentally friendly

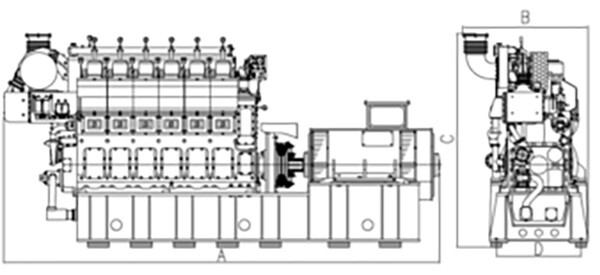

Outline

Gensets Dimensions（approx.)
Model	A	B	C	Weight
Model	mm	mm	mm	(kg)
500GF-S	5900	1577	3005	17000
600GF-S	5950	1540	2890	17500
800GF-S	5950	1540	2890	18200
1000GF-S	6600	1750	2994	21000

Remarks: Dimensions and weight are for reference only. For generator set model selection, please make communicate with relevant personnel. The delivery scope for each model engine shall be performed as per the corresponding technical files.
