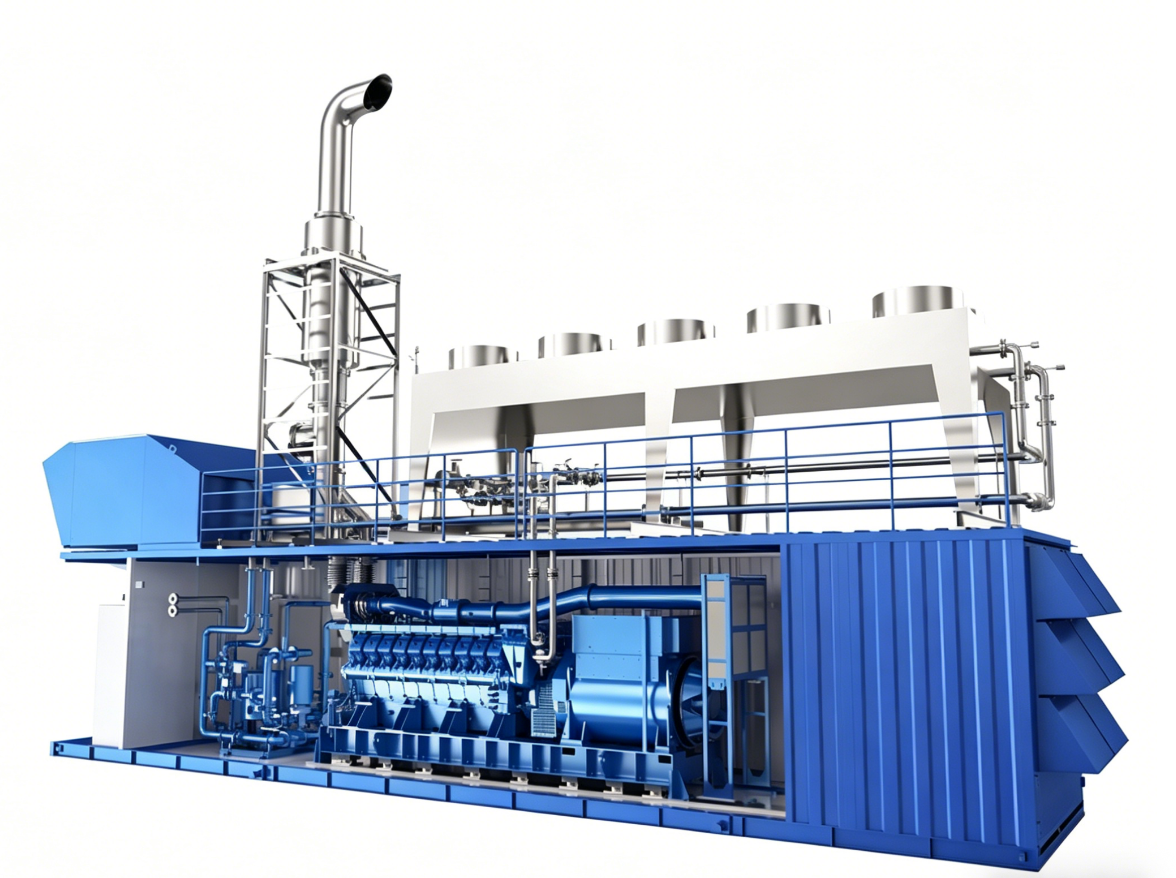

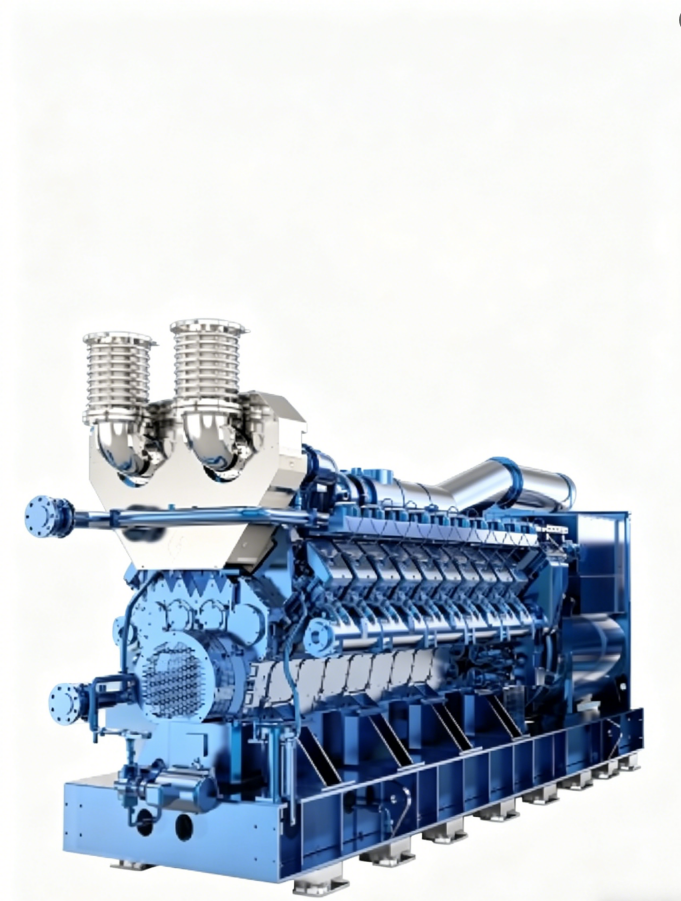

LY1600 Series

LY1600 Series

Technical Parameters (Natural Gas):


Generator Set Model: LY1600AGL/M/H-T
Electrical Power:1600 kW
Fuel Consumption:3682 kW
Electrical Efficiency:42.1%
Thermal Efficiency:45.8%
Total Efficiency:87.9%
Frequency:50 / 60Hz

Dimensions(LxWxH):6820 x 1700 x 2650 mm 1}


Note: Factors such as gas quality, air pressure, calorific value, operating environment, and personnel operation level will affect the final output of the unit.
1}For the transportation size of genset, the components set separately must be considered separately.



INQUIRY NOW

Introduction

文本文字

NOx ≤ 500 mg/Nm³  2}

Application Area

Unit

Natural Gas Application 50Hz

Associated Petroleum Gas Application   50/60Hz

Low-Concentration CBM Application   50/60Hz

Biogas Application 50/60Hz

Industrial Gas Application 50/60Hz

Biomass Gas Application 50/60Hz

Blast Furnace Gas Application 50/60Hz

Coal-to-Gas Application 50/60Hz

Genset Model

LY1600AGL/M/H-T

LY1600AGL/M/H-T1

LY1600AGL/M/H-WL

LY1600AGL/M/H-Z

LY1600AGL/M/H-M

LY1600AGL/M/H-S

LY1600AGL/M/H-G

LY1600AGL/M/H-M1

Electrical Power3} (±5%)

kW

1600

1200

1500

1550

1200

1100

1100

1200

Fuel Consumption

kW

3682

3141

3483

3650

3000

2910

2933

3141

Electrical Efficiency4}

%

42.1

38.2

40.2

41.1

40.0

37.8

37.5

38.2

Thermal Efficiency

%

45.8

48.2

47.6

47.1

47.2

48.4

48.6

46.7

Total Efficiency

%

87.9

86.4

87.8

88.2

87.2

86.2

86.1

84.9

Note: Factors such as gas quality, air pressure, calorific value, operating environment, and personnel operation level will affect the final output of the unit.
• Sewage Treatment Biogas (65%CH₄ / 35%CO₂)
• Biomass gas (60%CH₄ / 32%CO₂, the rest are N₂)
• Landfill gas (50%CH₄ / 27%CO₂, the rest are N₂)
• Industrial gas (75%CO, 6%H₂, 3%CH₄, 9%CO₂, the rest are N₂)
2}NOx emission: NOx ≤ 500 mg/Nm³, NOx/Nm³ (Content of dry exhaust gas in 5% O₂)
3}Refers to ISO8525-1, 50Hz Generator U=10kV, Cosphi=1.0, the minimum methane number of natural gas is MN70
4}Refers to ISO3046-1, 50Hz Generator U=10kV, Cosphi=1.0, the minimum methane number of natural gas is MN70
