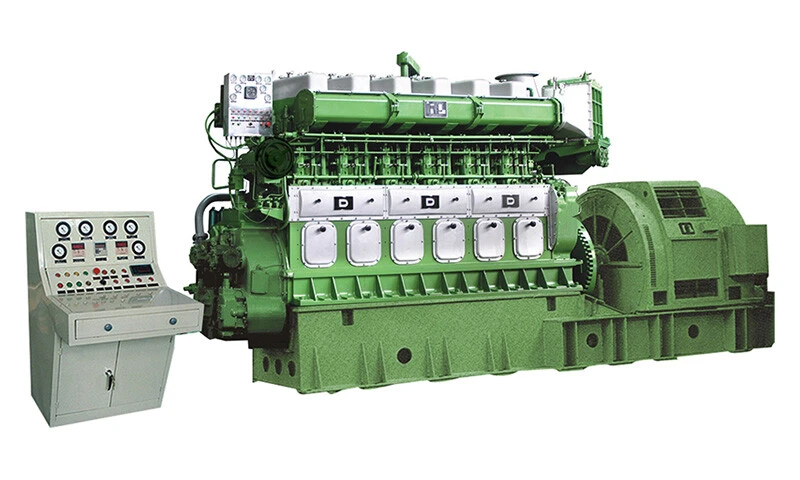

Taikai Supplied Series Dual Fuel Generator Set (2000 – 3500kW)



taikai@taikai.cc



taikaigroup@126.com



Info@transelec.com.cn



sales@transelec.com.cn

INQUIRY NOW

Introduction

文本文字

Model Portfolio Table

Rated output (kW)	2000	2200	2500	3000	3200	3500
Bore x Stroke (mm)	330 / 340 x 450
Engine Type	Four-Stroke, In-line, direct Injection, Turbocharged, Intercooled
Engine Rated Power (kW)	2206	2427	2795	3319	3676	3800
Speed (rpm)	50Hz / 60Hz@600
SFOC (g/kW·h)	194+3% (during fuel mode)
SFGC (KJ/kW·h)	8600 (at rated power)
SLOC (g/kW·h)	≤0.6
Gas Supply Pressure	4 – 6 bar
Substitution Rate	70 – 85% (at 50%-85% rated power)

Electrical Performance

Voltage	Voltage no-load regulation range		%	95~105
	Voltage fluctuation rate		%	±1
	Steady state voltage regulating rate		%	±2.5
	Transient voltage regulating rate		%	±20～-15
	Stabilization time		s	1
	Alternator Excitation method			Brushless AVR
Frequency	Steady-state frequency (rev.) regulating rate		%	5
	Frequency (rev.) fluctuation rate		%	±0.5
	Transient frequency regulating rate		%	±10
	Stabilization time		s	< 5
	Frequency regulating method			Auto / Manual
Protection	Over Speed	115% Nr A, T, S	Reverse Power		-9.6% Pn A, T
	LO. Pressure	0.25MPa A, 0.15MPa T, S	Over Current		130% In A, T
	Freshwater Temperature	80℃ A, 85℃ T, S	Over Voltage		120% Vn A, T
	LO. Temperature	90℃ A	Overload		110% In A

Notes: All engine rating data is based on ISO 3046/1.
Reference conditions: Ambient 45℃, Relative humidity 60%, Intercooler coolant inlet 32 ℃.
If test ambient conditions are not the same as the fiducially ambient conditions. The power shall be revised according to ISO3046-1: 2002.
Fuel characteristics: MDO, Lower heat value:42700kj/kg, Consumption tolerance: +5%.
Power: An overload of 10% is permitted for one hour every twelve hours of operation.

Characteristics:

Meet with: ISO8528, ISO3046, GB/T13032.
Marine medium speed engine driven, unrestricted service configured, IMO Tier IID2 certified.
Brushless self-excited alternator with AVR, G3 electricity quality.
Application:Power plant set, Marine Auxiliary power.
As offer customized power plant solutions with multi-options fuels of diesel, LPFO/HFO, biofuel, natural gas, tire pyrolysis oil, etc.
Easy installation, high reliability, low noise, low operating cost, and environmentally friendly.

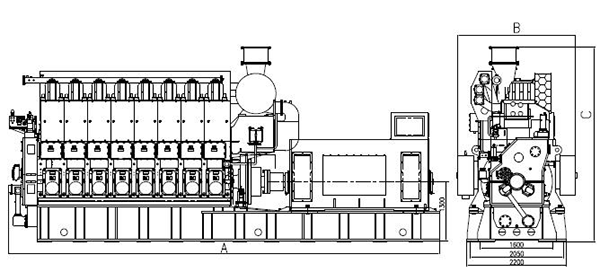

Outline

Gensets Dimensions（approx.)
Model	A	B	C	Weight
Model	mm	mm	mm	(kg)
2000GF	8050	2600	4289	53000
2200GF	8050	2600	4289	53500
2500GF	8100	2600	4289	56000
3000GF	9400	2580	4220	75000
3200GF	9450	2680	4650	79000
3500GF	9508	2680	4650	79500

Remarks: Dimensions and weight are for reference only. For generator set model selection, please make communicate with relevant personnel. The delivery scope for each model engine shall be performed as per the corresponding technical files.
